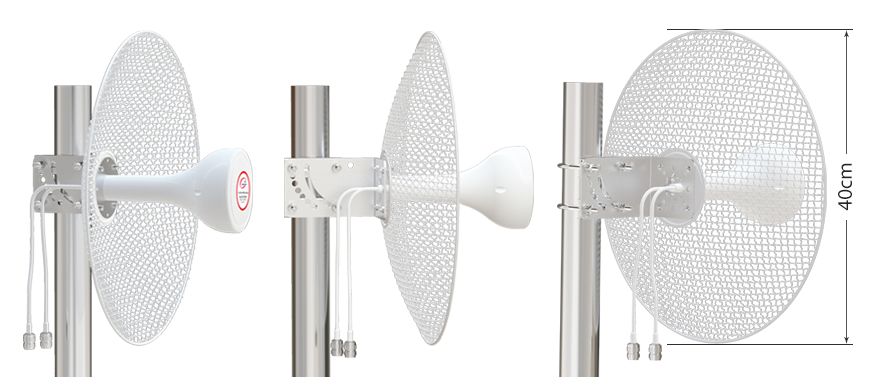

4G/5G 2*19dBi Hyperbolic Antenna

Technical Specifications

  Electrical

  Model

ANT1742D19PG-XP

  Frequency Range

1710-2690MHz

3300-4200MHz

  Gain( dBi)

17±1dBi

19±1dBi

  VSWR

<2.0

<2.0

  Horizontal Beam width

25±5°

15±5°

  Vertical Beam width

25±5°

15±5°

  Polarization

Dual Slant (±45°)

  Isolation

>20dB

  Front to Back Ratio

>25dB

  Maximum Power Per Port

50W

  Impedance

50Ω

  Lighting protection

DC Ground

  Mechanical

  Connector

2 * N Female

  Antenna Size

φ0.4 m

  Antenna Weight

1kg

  Antenna color

white

  Diameter of the Pole

Φ30mm to φ50mm

  Mechanical Tilt

± 20°

  Operational Temperature

-40°C to +70°C (-32°F to +158°F)
