Model

ANT4971D30PH-MIMO-RPSMA-35CM

Frequency Range

4.95-5.1GHz

5.1-5.9GHz

5.9-7.125GHz

Gain

29dBi

29.5dBi

30.5dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant (V/H or ±45°)

Isolation

>30dB

Front to Back Ratio

>35dB

Horizontal Beam width

5°

Vertical Beam width

5°

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2*RPSMA

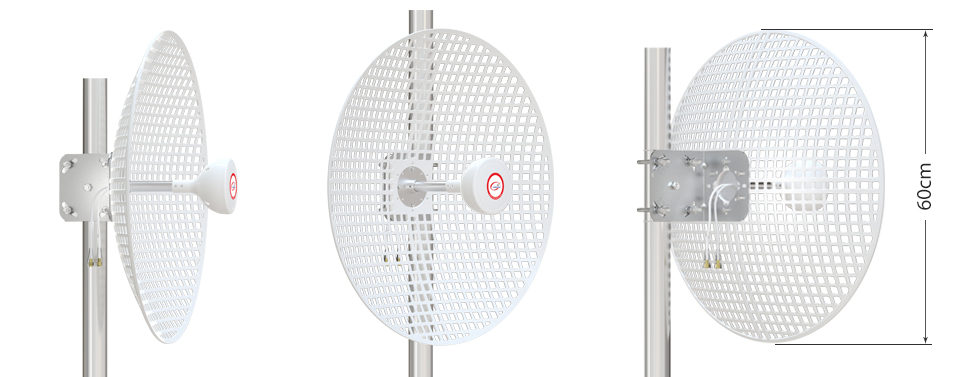

Antenna Size

Diameter: 600mm (23.62”)

Depth: 108mm (4.25”)

Antenna Weight

3 kg

Antenna color

white

Dish material

Die-cast aluminum

Diameter of the Pole

Φ30 to φ50 mm

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
