ANT4965D30P6-C5X

The AT4965D30P6-MIMO is a 5 GHz 30dBi antenna that is ideal for Point-to-Point ( PtP ) links of 30+ km. Its all-aluminum design

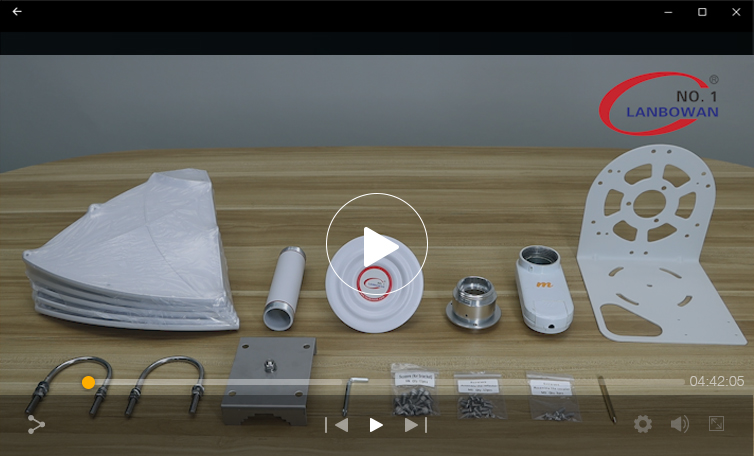

enhances reliability. It can be shipped via DHL, FedEx, or UPS due to disassembled to compact size for transport.

Features

  4.9-6.5GHz Frequency

  30dBi High Gain

  MIMO

  Dual Slant

  2 feet Dish

Applications

  4.9/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band

  MIMO and 802.11n Applications

  WiMAX Applications

  Long Distance Backhaul and Point to Point Data Links

Technical Specifications

Electrical

Model

ANT4965D30P6-C5X

Frequency Range

4.9-5.1GHz

5.1-5.9GHz

5.9-6.5GHz

Gain

29dBi

30dBi

31dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant

Isolation

>30dB

Front to Back Ratio

>35dB

Horizontal Beam width

Vertical Beam width

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

C5X

Antenna Size

φ0.6m

Antenna Weight

6.5kg

Antenna color

white

Dish material

aluminum

Diameter of the Pole

Φ30 to φ80 mm

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
