ANT4971D34P6-MIMO

The AT4971D34P6-MIMO is a 6 GHz 34dBi antenna that is ideal for Point-to-Point ( PtP ) links of 50+ km. Its all-aluminum design enhances reliability.

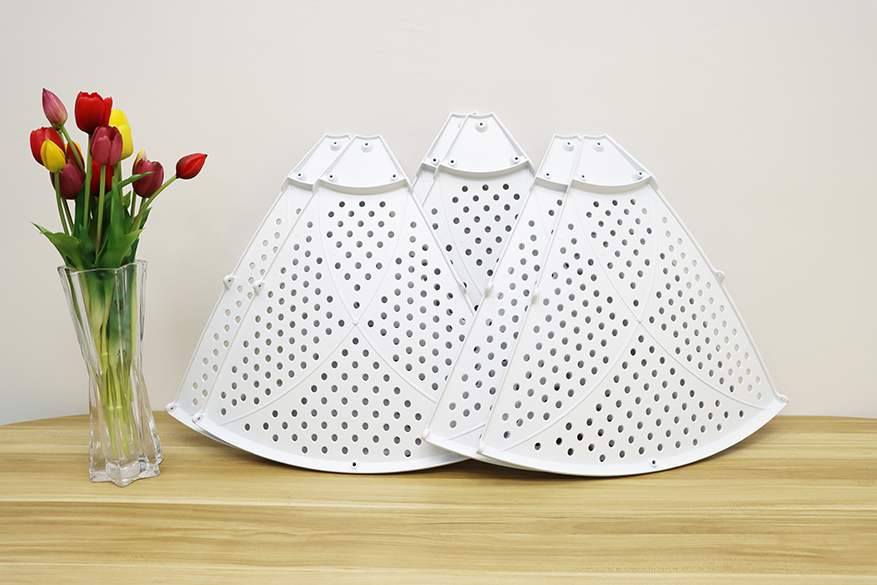

 It can be shipped via DHL, FedEx, or UPS due to disassembled to compact size for transport.

Features

  4.95-7.125GHz Frequency

  34dBi High Gain

  MIMO

  Dual Slant

  3 Feet Dish

Applications

  4.9/5.1/5.3/5.4/5.8/6.4/7GHz ISM and UNII Band

  MIMO and 802.11n Applications

  802.11AX Applications

  Long Distance Backhaul and Point to Point Data Links

Technical Specifications

Electrical

Model

ANT4971D34P6-MIMO

Frequency Range

4.95-5.1GHz

5.1-5.9GHz

5.9-7.125GHz

Gain( dBi)

31.5dBi

32.5dBi

34dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant (V/H or ±45°)

Isolation

>30dB

Front to Back Ratio

>40dB

Horizontal Beam width

3.5°

Vertical Beam width

3.5°

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2 * RPSMA

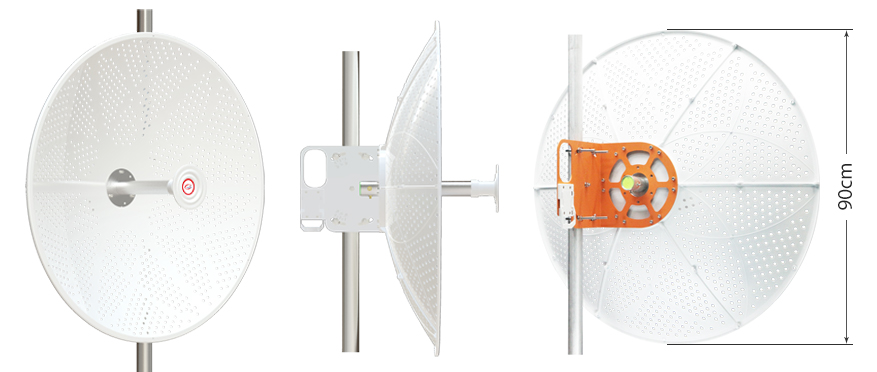

Antenna Size

φ0.9 m

Antenna Weight

8.5kg

Antenna color

white

Dish material

aluminum

Diameter of the Pole

Φ30 to φ80 mm

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
