6GHz MIMO Antenna

Features

  4.95-7.125GHz Frequency

  30dBi High Gain

  MIMO

  Dual Slant

  2 feet Dish

Applications

•  4.9/5.1/5.3/5.4/5.8/6.4/7 GHz ISM and UNII Band

•  MIMO and 802.11n Applications

•  802.11AX Applications

•  Long Distance Backhaul and Point to Point Data Links

Technical Specifications

Electrical

Model

ANT4971D30P6-MIMO

Frequency Range

4.95-5.1GHz

5.1-5.9GHz

5.9-7.125GHz

Gain( dBi)

29dBi

30dBi

31dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant (V/H or ±45°)

Isolation

>30dB

Front to Back Ratio

>35dB

Horizontal Beam width

Vertical Beam width

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2 * RPSMA

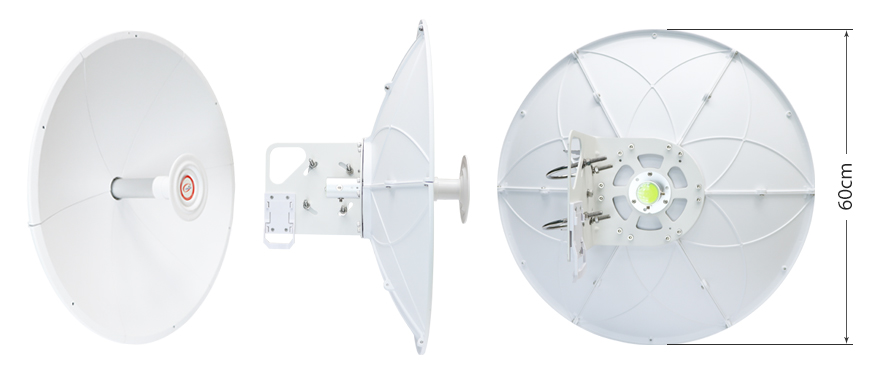

Antenna Size

φ0.6 m

Antenna Weight

6.5kg

Antenna color

white

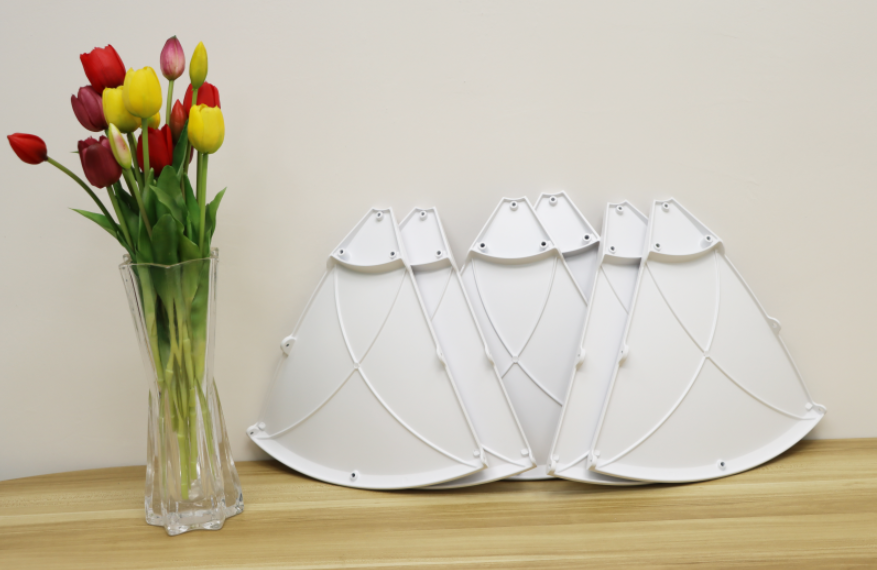

Dish material

aluminum

Diameter of the Pole

Φ30 to φ80 mm

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
