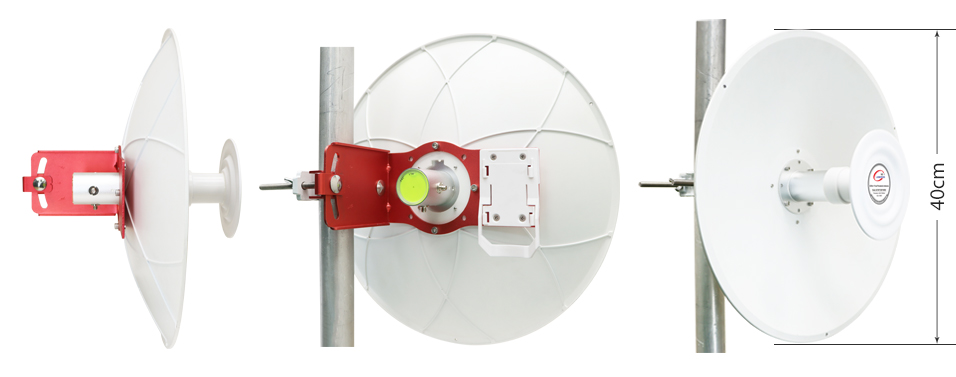

6GHz 1-Foot Parabolic Antenna

  Features

  •  4.95-7.125GHz Frequency

  •  25dBi High Gain

  •  MIMO

  •  Dual Slant (V/H or ±45°)

  •  1 feet Dish

  Applications

  •  4.9/5.1/5.3/5.4/5.8/6.4/7.125 GHz ISM and UNII Band

  •  MIMO and 802.11n Applications

  •  WiMAX Applications

  •  Long Distance Backhaul and Point to Point Data Links


Technical Specifications

Electrical

Model

ANT4971D25P-MIMO

Frequency Range

4.95-5.1GHz

5.1-5.9GHz

5.9-7.125GHz

Gain( dBi)

24dBi

24.5dBi

25dBi

VSWR

<2.5

<2.0

<2.0

Polarization

Dual Slant (V/H or ±45°)

Isolation

>30dB

Front to Back Ratio

>30dB

Horizontal Beam width

Vertical Beam width

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

Mechanical

Connector

2 * RPSMA

Antenna Size

φ0.4 m

Antenna Weight

2.5kg

Antenna color

white

Dish material

aluminum

Diameter of the Pole

Φ30 to φ80 mm

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
