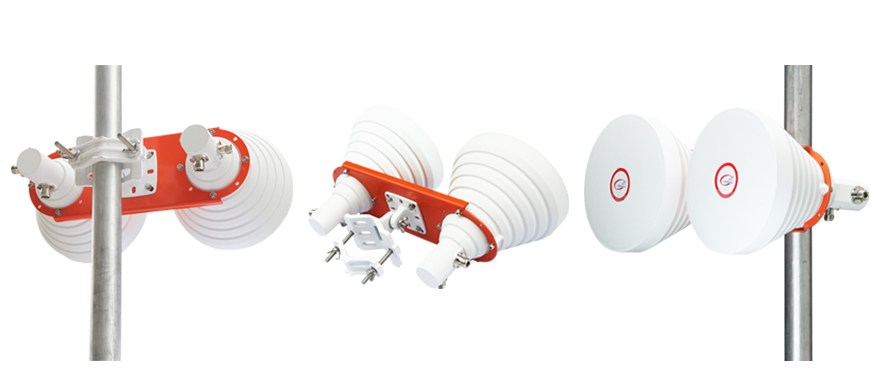

5GHz MIMO Antenna

Features

•  4.9-6.5GHz Frequency

 19dBi High Gain

•  4x4 MIMO

•  Double Dual Slant (V/H or ±45°)

Applications

•  4.9/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band

•  4x4 MIMO and 802.11ax Applications

•  Long Distance Backhaul and Point to Point Data Links

Technical Specifications

Electrical

Model

ANT4965D19P2-MIMO

Frequency Range

4.9-5.1GHz

5.1-5.9GHz

5.9-6.5GHz

Gain( dBi)

18dBi

19dBi

19.5dBi

VSWR

<2.0

<2.0

<2.0

Polarization

Dual Slant (V/H or ±45°)

Isolation

>30dB

Front to Back Ratio

40dB

Azimuth Beam Width -3 dB

V20°/H20°

Elevation Beam Width -3 dB

V20°/H20°

Azimuth Beam Width -6 dB

V30°/H30°

Elevation Beam Width -6 dB

V30°/H30°

Maximum Power Per Port

50W

Impedance

50Ω

Lighting protection

DC Ground

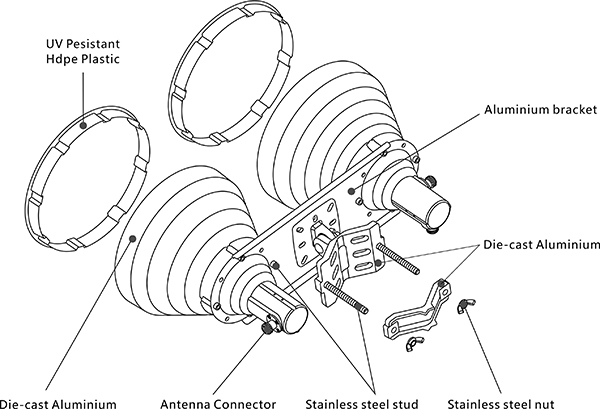

Mechanical

Connector

4 * N Female

Antenna Size

2* Φ208*278mm

Antenna Weight

4.3kg

Antenna color

white

Horn material

aluminum

Diameter of the Pole

Φ30 to φ80 mm

Mechanical Tilt

± 30°

Operational Temperature

-40°C to +70°C (-32°F to +158°F)
