LTE/CDMA/PCS/DCS Omni Antenna
Features and Product Description |
● High gain output ● Installs on any ferrous metal surface ● Outdoor rated waterproof ● Connects to cell phone signal boosters and modems |
Technical Specifications | ||||||
Electrical | ||||||
Frequency Range | MHz | 698-960 | 1710-2700 | 3400-4000 | ||
Gain | dBi | 3.5 | 4 | 5 | ||
Polarization | Vertical | |||||

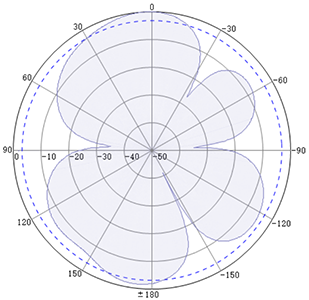

Beamwidth | Vertical | deg | 360° | |||
Horizontal | 45° | 40° | 35° | |||
VSWR | <1.8 | <1.8 | <1.8 | |||
Maximum Power Per Port | W | 50W | ||||
Impedance | Ω | 50Ω | ||||
Lighting protection | DC Ground | |||||
Mechanical | ||||||
Antenna size | mm | 211*57*67 | ||||
Antenna Color | white | |||||
Connector Type | N Female or SMA | |||||
Operational Temperature | °C | -50°C to +70°C | ||||
Operational Humidity | % | £ 95 | ||||
|
|
